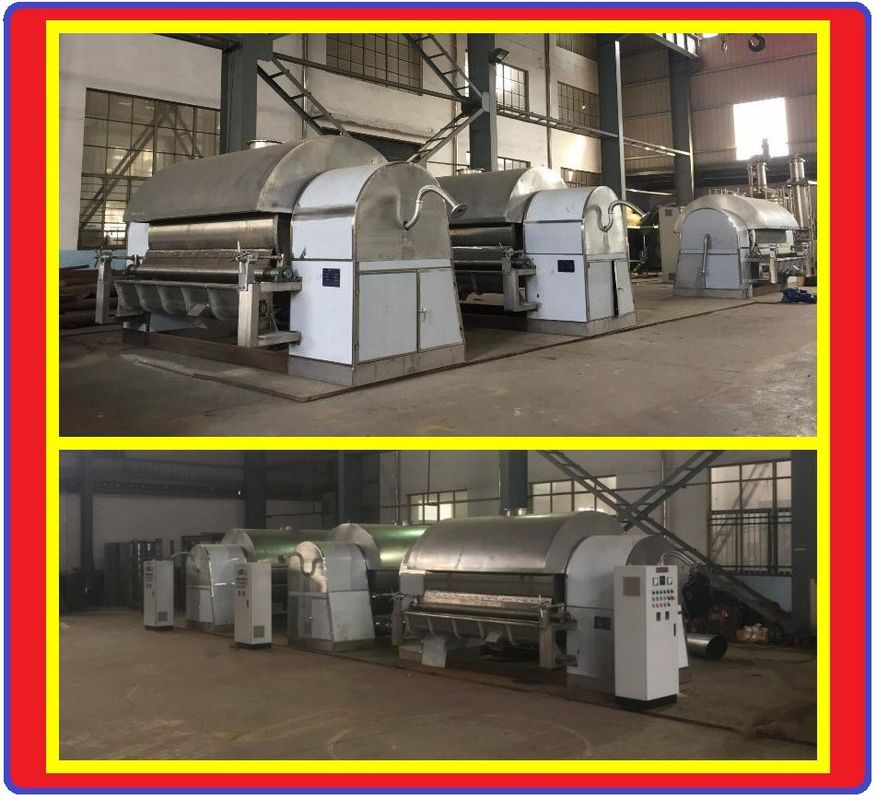

Thermal Oil heating Cooling Drum Flaker Low Temperature Drying 50 / 60Hz

Principle of GT Cooling Drum Flaker / Dryer

GT roller drum dryer is a kind of indirect heating dryer in continuous production. Raw material fed from top or bottom of drum and stick on the drum. Filling steam or thermal oil inside the drum, the heat then transferred to raw material, thus raw material could get dried. Flake form dried product will be scraped off, and preliminarily crushed as well as transported by screw conveyor.
Evaporated moisture will be sucked out by exhausting fan.
The dryer is suitable for liquid or paste form raw material with certain viscosity.

Feature of GT Cooling Drum Flaker / Dryer

(1)High efficiency. Almost all of the heat could be used on drying, drying efficiency could reach 80-90%.

(2)Widely used. The dryer is available for drying the raw material with large moisture content range. We could get the best drying effect by adjust feeding rate, thickness of pavement, drum rotating speed, feeding form etc.

(3) Short retention time. Drying time only remains 10-15 seconds, it is suitable for heat sensitive material.

Application of GT Cooling Drum Flaker / Dryer

It is suitable for drying liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical industry, foodstuff industry, and metallurgy industry and so on.

Technical Parameters of GT Cooling Drum Flaker / Dryer

After Sell Service

Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design



Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing



Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell
