제품 상세 정보:
|
| 전압: | 110V/220V/380V/415V/480V | 헤르쯔: | 50Hz, 60Hz |
|---|---|---|---|
| 재료: | CS/SUS304/SUS316L/Titanium | 임명 힘: | 5.5KW-85KW |
| 건조 기온: | 50-150℃ | 중량: | 0.8Ton-40Ton |
| 난방 자원: | 증기/열 기름/온수 | 건조용 효율성: | 80% |
| 방식이 제어됩니다: | 단추/터치스크린/리모트 | 특별한 디자인: | 폭발 저항/저온 건조 |
| 선적 Capcity: | 150KGS/Batch-8000KGS/Batch |
The cost of stainless steel mesh belt drying machine in conveyors, belt dryer machine is much higher, so it is usually selected according to the situation as customers' requirements. If the drying materials are not corrosive and the quality requirements are not high, the carbon steel shall be selected. Of course, the food industry drying materials must choose stainless steel mesh belt drying machine in conveyors, belt dryer machine. So the carbon steel type mesh belt dryer is suitable for coal ,charcoal and other material briquettes. While the stainless steel (like SUS 304, SUS316, etc.) type mesh belt dryer is suitable for food, like fruits, vegetable, sea food and some other food industry drying materials.
The material is evenly spread on the mesh belt by the feeder, and the mesh belt adopts 12-60 mesh stainless steel screen. Move in the dryer by the drive. The drying machine is composed of several units, and each unit has its own hot air circulation. Part of the exhaust gas is discharged by a special dehumidifying fan. The exhaust gas is controlled by the regulating valve. The mesh belt moves slowly, and the operation speed can be adjusted freely according to the material temperature. The upper and lower circulation units can be flexibly equipped according to the user's needs, and the number of units can be selected according to the needs.
It is suitable for the drying of flake, strip and granule materials with good air permeability. The series dryer has the advantages of fast drying speed, high evaporation intensity and good product quality. The paste material of dehydrated filter cake can be dried by granulation or bar.

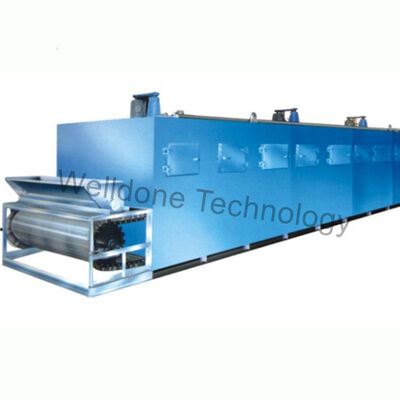

Picture of High Efficient Automatic Functioning Long Conveyor Belt Dryer in Working
