LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation

LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation
LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation

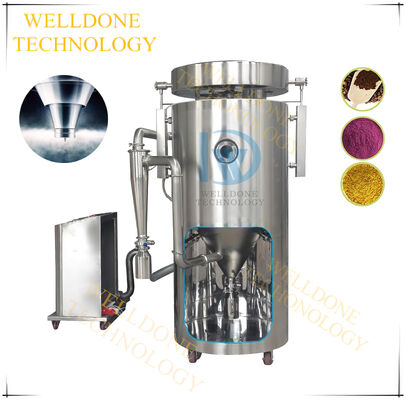

큰 이미지 :  LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation

제품 상세 정보:
원래 장소: 중국 장수
브랜드 이름: Welldone
결제 및 배송 조건:
최소 주문 수량: 1
가격: $3,300-3,600
접촉

LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation

설명
전압: 220V-480V (TBD) 힘: 3.5kW
치수: 650*500*1550mm 무게: 120kg
가열 방법: 전기 난방 재료: SUS304, SUS316L
공기 입구 온도: 30~300C 증발 용량: 1Kg/h
건조 온도: 150-300℃ 건조 효율: 50%
핵심 구성 요소: 펌프, 기어, 모터, PLC 건축 자재: SUS304/SUS316L
가열원: 전기 같은 퇴원방법: 수동/공압/전기
수분 함량: 40-60% (최대 90%)
강조하다:

5 Lit Spray Dryer

,

30~300℃ Vacuum Spray Dryer

,

1kg/h Evaporation Lab Spray Dryer

LPG-5 Glass Lab Mini Low Temperature Vacuum Spray Dryer/Pressure Nozzle Spray Dryer/Spray Dried Machinery 5 Lit
Product Overview

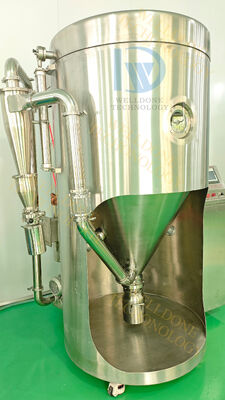

The LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer is designed with an enlarged drying tower diameter to prevent flavor wall adhesion. Featuring arc transitions throughout and constructed from SUS316L or SUS304 materials, this industrial-grade spray dryer offers optional cooling devices and chamber air jet systems for enhanced performance.
Key Features
  • High-speed drying: Evaporates 95%-98% of water content in seconds, ideal for heat-sensitive materials
  • Superior product quality: Produces powders with excellent uniformity, solubility, fluidity, and purity
  • Simplified operation: Processes liquids with 40-90% moisture content directly into powder without grinding or sieving
  • Adjustable parameters: Customizable product size, bulk density, and moisture content within specified ranges
Operating Principle

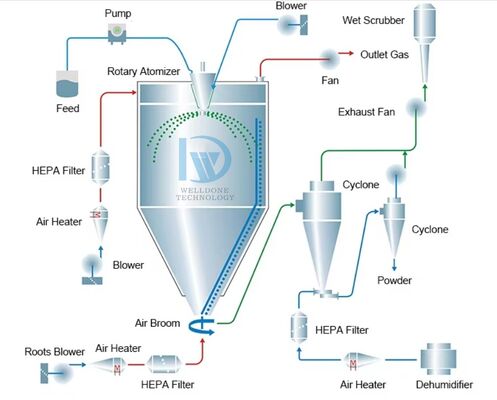

Filtered and heated air enters the dryer in a spiral pattern through an air distributor. Liquid material is atomized into fine mist by a high-speed rotary atomizer, rapidly drying upon contact with hot air. Final powder products discharge continuously from the drying tower and cyclone separator, while waste air exits through the exhaust fan.
LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation 0
LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation 1
LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation 2
LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation 3
Technical Specifications
Type Spray Drying Equipment
Application Chemicals Processing, Plastics Processing, Food Processing
Construction Material SUS304, SUS316L, Titanium
Voltage 220V-480V (TBD)
Power 2.2KW-255KW
Drying Temperature 150-300℃
Evaporation Capacity 1.5L-5000L
Drying Efficiency 50%
Warranty 2 years
Weight 250KGS-40000KGS
Comprehensive Service Package
Pre-Sales Service:
  • Technical data for equipment selection
  • Pilot test running
  • Equipment selection and material analysis consultation
  • Flow chart and basic drawing provision
  • Technical design support
Sales Service:
  • Factory layout planning
  • Standard-compliant manufacturing
  • Bi-weekly manufacturing progress reports
  • Full manufacturing and transportation supervision
  • Comprehensive shipping documentation
After-Sales Service:
  • On-site installation support
  • Commissioning and operator training
  • Maintenance and repair assistance
  • One year spare parts provision
  • Two-year quality warranty
Company Values
Vision: The customer would become friend and family to us
Mission: Providing better quality, service and feeling to our customers, trying to become researcher of new technology; developer & implementer of exporting standard; integrator of top intelligence & technology in machinery industry
Values: Obligation; Profession; Progressing; Efficiency; Customer Orientation
LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation 4
LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation 5
LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation 6
LPG-5 Lab Mini Low Temperature Vacuum Spray Dryer with 5 Lit Capacity and 30~300℃ Temperature Control for 1kg/h Evaporation 7
